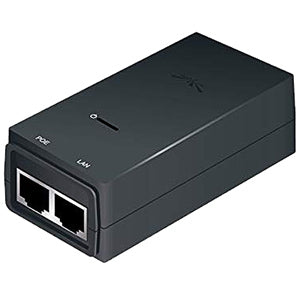

Ubiquiti POE-24-12W-G 24V 12W PoE Adapter with Gigabit LAN Port

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including: airFiber®, airMAX®, EdgeMAX®, mFi®,...
Vendor: Ubiquiti
SKU: POE-24-12W-G
Availability: In Stock
$15.50
$15.50
Subtotal: $15.50
Ubiquiti POE-24-12W-G 24V 12W PoE Adapter with Gigabit LAN Port

Ubiquiti POE-24-12W-G 24V 12W PoE Adapter with Gigabit LAN Port

$15.50

Ubiquiti POE-24-12W-G 24V 12W PoE Adapter with Gigabit LAN Port

$15.50
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including: airFiber®, airMAX®, EdgeMAX®, mFi®, UniFi® AP, UniFi Vide/ airVision®, * Check product specifications to verify PoE compatibility.

POE-24-12W-G Features:
  • Output Voltage 24VDC @ 0.5A
  • LAN Activity Indicator: No
  • Gigabit LAN Port: Yes
  • Remote Reset Capability: Yes
  • Reset Button: Yes
  • Input Voltage 90-260VAC @ 47-63 Hz
  • Input Current: 0.3A @ 120VAC, 0.2A @ 240VAC
  • Inrush Current: <30A Peak @ 120VAC, <60A Peak @ 230VAC
  • Efficiency: 75+%
  • Output Ripple 1% Max
  • Switching Frequency 50 kHz
  • Line Regulation ± 1%
  • Load Regulation ± 3%
  • 2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
  • AC Connector IEC-320 C6
  • Data IN / POE RJ45 Shielded Socket
  • Surge Protection Difference and Common Mode
  • Clamping Protection 11V Data, 60V Power
  • Max. Surge Discharge 1500A (8/20 µs) Power
  • Peak Pulse Current 36A (10/1000 µs) Data
  • Shunt Capacitance <5 pF data
  • Response Time <1 ns
  • Compliance: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B
  • AC Cable with Earth Ground: USA, EU, AR, BR, UL, CCC, Mexico
