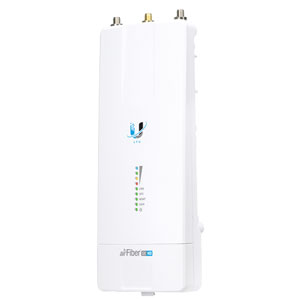

Ubiquiti AF-5XHD-US airFiber 5XHD 5 GHz Carrier Radio with LTU Technology

Ubiquiti AF-5XHD-US airFiber 5XHD 5 GHz Carrier Radio with LTU Technology

The AF‑5XHD covers the entire, license-free, 5 GHz spectrum and includes DFS approval. Features: Programmable Transmit Power The radio's transmit power level can be programmed up to +29 dBm Programmable...
Vendor: Ubiquiti
SKU: AF-5XHD-US
Availability: In Stock
$437.17
$437.17
Ask An Expert
Subtotal: $437.17
Ubiquiti AF-5XHD-US airFiber 5XHD 5 GHz Carrier Radio with LTU Technology

Ubiquiti AF-5XHD-US airFiber 5XHD 5 GHz Carrier Radio with LTU Technology

$437.17
Ubiquiti AF-5XHD-US airFiber 5XHD 5 GHz Carrier Radio with LTU Technology

Ubiquiti AF-5XHD-US airFiber 5XHD 5 GHz Carrier Radio with LTU Technology

$437.17
Description
The AF‑5XHD covers the entire, license-free, 5 GHz spectrum and includes DFS approval.

Features:
  • Programmable Transmit Power The radio's transmit power level can be programmed up to +29 dBm
  • Programmable Duty Cycle (GPS synchronized frames) The AF-5XHD allows configuration of asymmetric TX and RX duty cycles. TX ratios include 25%, 33%, 50%, 66.7%, and 75%
  • Configurable GPS Synchronization The AF-5XHD offers configurable support for 2, 2.5, 4, and 5 ms frames. Timing is compatible with all other synchronous systems
  • Split TX and RX Frequency1 The radio can operate on different frequencies for TX and RX, allowing great flexibility for interference avoidance
  • Split TX and RX Channel Bandwidth1 Support for different channel bandwidths for TX and RX allows users to scale required data capacity more efficiently
  • Adaptive Modulation up to 1024QAM Adaptive modulation rates of up to 1024QAM (4096QAM with targeted upgrade) are supported
  • Dual Redundant Gigabit Ethernet Ports with PoE The AF-5XHD has two Gigabit Ethernet ports that can be used to provide redundant PoE power
  • OFDM and OFDMA Support1 The radio offers flexible scheduling for 2, 4, or 8 subchannels
  • Bluetooth Wireless Configuration Use the built-in Bluetooth interface for wireless configuration
  • AlignLock™ Antenna Aiming Guard This alerts the user when the radio or antenna aiming is changed due to tampering, impact, or storm damage
  • User-Configurable Interference Mitigation Three user-selectable profiles support both high‑interference and greenfield deployments for robust, optimal performance
  • Redundant Images for Fail-Safe Configuration Creation of backup firmware images ensures fail-safe configuration and enhances reliability
  • Persistent Spectrum Analysis with Dedicated RX Perform real-time spectral analysis for the full band on live links without interrupting the link operation
  • Wide Voltage Range, Enhanced Surge Protection The AF-5XHD has an operating voltage range of 19‑50VDC2 and provides enhanced surge protection
