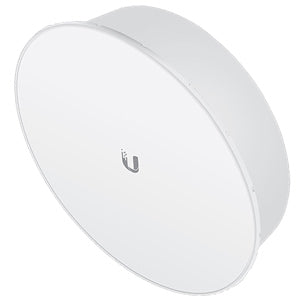

Ubiquiti PBE-5AC-300-ISO-US-5PK airMAX® ac Bridge with RF Isolated Reflector

Ubiquiti PBE-5AC-300-ISO-US-5PK airMAX® ac Bridge with RF Isolated Reflector

The PowerBeam ac ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. PBE-5AC-300-ISO-US Features: airMAX ac Protocol Support...
Vendor: Ubiquiti
SKU: PBE-5AC-300-ISO-US-5PK
Availability: In Stock
$518.49
$518.49
Quantity: Pack of 5
Ask An Expert
Subtotal: $518.49
Ubiquiti PBE-5AC-300-ISO-US-5PK airMAX® ac Bridge with RF Isolated Reflector

Ubiquiti PBE-5AC-300-ISO-US-5PK airMAX® ac Bridge with RF Isolated Reflector

$518.49
Ubiquiti PBE-5AC-300-ISO-US-5PK airMAX® ac Bridge with RF Isolated Reflector

Ubiquiti PBE-5AC-300-ISO-US-5PK airMAX® ac Bridge with RF Isolated Reflector

$518.49
Quantity: Pack of 5
Description
The PowerBeam ac ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference.

PBE-5AC-300-ISO-US Features:
  • airMAX ac Protocol Support
  • Long-Range Point-to-Point (PtP) Link Mode
  • Selectable Channel Width
  • Automatic Channel Selection
  • Transmit Power Control: Automatic/Manual
  • Automatic Distance Selection (ACK Timing)
  • Strongest WPA2 Security
  • Dimensions: 364 x 364 x 276 mm (14.33 x 14.33 x 10.87")
  • Power Supply: 24V, 0.5A Gigabit PoE
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return) Supported Voltage
  • Max. Power Consumption 5.5W
  • Gain 22 dBi
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Processor Specs: Atheros MIPS 74Kc, 560 MHz
  • Memory: 64 MB DDR2, 16 MB Flash
  • LEDs: (1) Power, (1) LAN, (4) WLAN
  • Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
  • Channel Sizes: (PtP Mode - 10/20/30/40/50/60/80 MHz), (PtMP Mode - 10/20/30/40 MHz)
  • Max. VSWR: 1.5:1
  • Built-In Mechanical Downtilt: ± 20°
  • Polarization: Dual Linear
  • Enclosure: Outdoor UV Stabilized Plastic
  • Mounting: Pole-Mount Kit Included
  • Wind Loading: 300 N @ 200 km/h (67.44 lbf @ 125 mph)
  • Wind Survivability: 200 km/h (125 mph)
  • ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
  • Operating Temperature: -40 to 70° C (-40 to 158° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Wireless Approvals: FCC, IC, CE
  • RoHS compliant
  • Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
  • Vibration Test: IEC 68-2-6
  • Temperature Shock Test: IEC 68-2-14
  • UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
  • Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Operating Frequency:
  • Worldwide - 5150 - 5875 MHz
  • USA: U-NII-1 - 5150 - 5250 MHz*
  • USA: U-NII-2A - 5250 - 5350 MHz*
  • USA: U-NII-2C - 5470 - 5725 MHz*
  • USA: U-NII-3 - 5725 - 5850 MHz*
Note:
  • * Some frequencies may require activation: Click Here
