Corning CCH-UM24-05-93T Plug & PlayTM Universal Module, Low-Loss, 24 F, Shuttered LC to MTP®, 50 µm Multimode (OM3)

Corning CCH-UM24-05-93T Plug & PlayTM Universal Module, Low-Loss, 24 F, Shuttered LC to MTP®, 50 µm Multimode (OM3)

The Plug & Play™ modules provide the interface between the MTP® on the trunk and the LC or SC duplex jumpers that will connect directly into the electronics. The LC...
Vendor: Corning
SKU: CCH-UM24-05-93T
Availability: In Stock
$820.50
$820.50
Ask An Expert
Subtotal: $820.50
Corning CCH-UM24-05-93T Plug & PlayTM Universal Module, Low-Loss, 24 F, Shuttered LC to MTP®, 50 µm Multimode (OM3)

Corning CCH-UM24-05-93T Plug & PlayTM Universal Module, Low-Loss, 24 F, Shuttered LC to MTP®, 50 µm Multimode (OM3)

$820.50
Corning CCH-UM24-05-93T Plug & PlayTM Universal Module, Low-Loss, 24 F, Shuttered LC to MTP®, 50 µm Multimode (OM3)

Corning CCH-UM24-05-93T Plug & PlayTM Universal Module, Low-Loss, 24 F, Shuttered LC to MTP®, 50 µm Multimode (OM3)

$820.50
Description

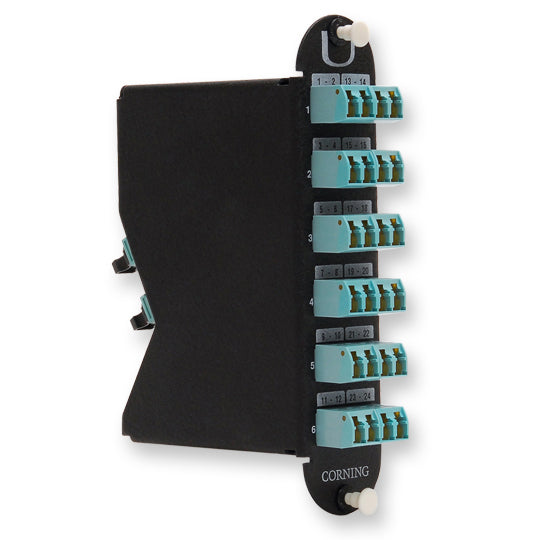

The Plug & Play™ modules provide the interface between the MTP® on the trunk and the LC or SC duplex jumpers that will connect directly into the electronics. The LC duplex adapters feature hinged VFL-compatible shutters that move up and out of the way when the connector is inserted.

Specially designed indents in the shutters ensure that the end faces of the connectors are never touched. These shutters replace the standard dust caps that typically once removed are never replaced, exposing the interior end faces to dust particles and possible damage.
Main Features:
  • Housing Color: Black
  • Front and Back Adapter Color: Aqua
  • Application: Data Center LAN/SAN
  • Shuttered modules create one-hand operation while eliminating need to keep up with dust caps
  • Connector modules allow for fiber modularity while offering both front- and rear-loading capability
  • Standard and low-loss components provide means of meeting increasingly stringent network performance requirements
  • Universal wired components enable moves, adds and changes without polarity concerns; provide a simple migration path between 2-fiber and parallel optic applications
Product Specifications:
  • Insertion Loss: 0.5 dB
  • Fiber Count: 24
  • Fiber Category: 50 µm MM (OM3)
  • Adapter Type Front: Shuttered LC
  • Adapter Type Back: MTP®
  • Number of Adapters per Panel: 12
  • RoHS Compliant: Yes, 2002/95/EG
