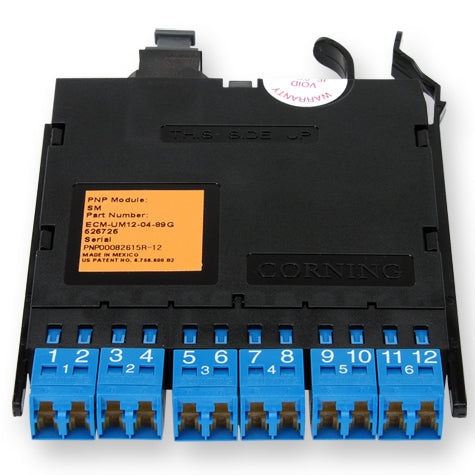

Corning ECM-UM12-04-89G 12 Fiber Pretium EDGE® Bend-Improved Single-Mode LC Duplex to MTP® Module Connector, Blue

12 Fiber Pretium EDGE® Bend-Improved Single-Mode LC Duplex to MTP® Module Connector provides the interface between the MTP® on the trunk and the LC duplex jumpers that will connect directly...
Vendor: Corning
SKU: ECM-UM12-04-89G
Availability: In Stock
$572.40
$572.40
Subtotal: $572.40
Corning ECM-UM12-04-89G 12 Fiber Pretium EDGE® Bend-Improved Single-Mode LC Duplex to MTP® Module Connector, Blue

Corning ECM-UM12-04-89G 12 Fiber Pretium EDGE® Bend-Improved Single-Mode LC Duplex to MTP® Module Connector, Blue

$572.40

Corning ECM-UM12-04-89G 12 Fiber Pretium EDGE® Bend-Improved Single-Mode LC Duplex to MTP® Module Connector, Blue

$572.40
12 Fiber Pretium EDGE® Bend-Improved Single-Mode LC Duplex to MTP® Module Connector provides the interface between the MTP® on the trunk and the LC duplex jumpers that will connect directly into the electronics. The LC duplex adapters feature hinged VFL-compatible shutters that move up and out of the way when the connector is inserted.

Indents in the shutters ensure that the end faces of the connectors are never touched. These shutters replace the standard dust caps that typically once removed are never replaced, exposing the interior end faces to dust particles and possible damage.
Main Features:
  • Housing Color: Black
  • Front Adapter Color: Blue
  • Rear Adapter Color: Black
  • Application: Data Center LAN/SAN
  • Shuttered modules create one-hand operation while eliminating need to keep up with dust caps
  • Connector modules allow for fiber modularity while offering both front- and rear-loading capability
Product Specifications:
  • Fiber Count: 12
  • Fiber Category: Bend-Improved SM (OS2)
  • Adapter Type Front: Shuttered LC
  • Adapter Type Back: MTP®
  • Number of Adapters per Panel: 6
  • Dimensions: 0.463" H x 3.53" W x 4.87" D
  • Connector A Ferrule : MTP® (pinned), Composite
  • Connector B Ferrule : LC Uniboot, Ceramic
  • Module Insertion Loss Max: 1.25 dB
  • Wavelengths: 1,310 nm / 1,550 nm
  • Cable Design: Polarity, Universal
  • RoHS Compliant: Yes, 2002/95/EG
