EnGenius ECW336 Cloud Managed Tri-Band Wi-Fi 6E Access Point with 5GbE Port

The EnGenius ECW336 is a Cloud Managed Wi-Fi 6E 4x4x4 Access Point, offering tri-band concurrent 802.11ax support for enhanced connectivity and performance. Delivering speeds up to 4,800 Mbps on the 6 GHz band, 2,400 Mbps on the 5 GHz band, and 1,200 Mbps on the 2.4 GHz band, this access point ensures reliable and high-speed wireless connections. With advanced security features like WPA3, WPA2-AES authentication, and robust management options, the ECW336 is perfect for modern business environments.

Key Features:

• High-Performance Wi-Fi 6E:

  • Tri-band concurrent 802.11ax support
  • Up to 4,800 Mbps on 6 GHz, 2,400 Mbps on 5 GHz, and 1,200 Mbps on 2.4 GHz

• Advanced Connectivity:

  • 1 x 5GbE port for high-speed connections
  • Supports Power over Ethernet (802.3at & 48V PoE input) for flexible installation over 100 meters

• Robust Security:

  • Supports WPA3 & WPA2-AES authentication

• Efficient Management:

  • Zero-touch provisioning, centralized cloud management, and visualized monitoring
  • Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App

• Enhanced Features:

  • Mesh Wireless Support simplifies setup, optimizes signals, and self-heals
  • Supports multiple SSIDs and VLAN tagging for network segmentation

Technical Specifications:

• Standards:

  • IEEE 802.11ax on 2.4 GHz, 5 GHz, and 6 GHz
  • Backward compatible with 802.11a/b/g/n/ac

• Antenna:

  • 4 x 2.4 GHz: 5 dBi (Integrated Omni-Directional)
  • 4 x 5 GHz: 6 dBi (Integrated Omni-Directional)
  • 4 x 6 GHz: 5 dBi (Integrated Omni-Directional)

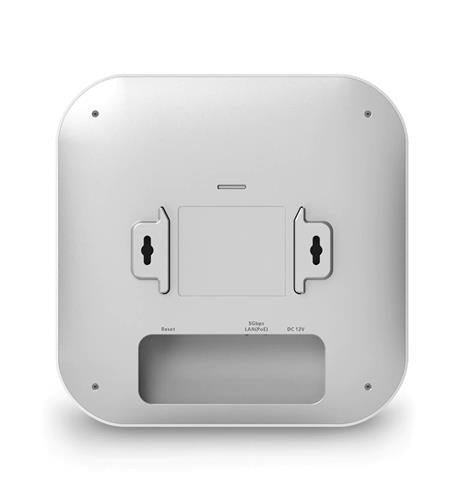

• Physical Interfaces:

  • 1 x 5GE Port (PoE+)
  • 1 x DC Jack
  • 1 x Reset Button

• Power Source:

  • Power-over-Ethernet: 802.3bt Input
  • 12VDC/3A Power Adapter

• Maximum Power Consumption:

  • 22.5W

• Operating Frequency:

  • Tri-Radio Concurrent 2.4 GHz, 5 GHz, and 6 GHz

• Environmental Specifications:

  • Operating Temperature: 32ºF to 104ºF (0 ºC to 40 ºC)
  • Storage Temperature: -40 ºF to 176 ºF (-40 ºC to 80 ºC)
  • Humidity: 90% or less (non-condensing)

• Dimensions & Weight:

  • Weight: 630g
  • Dimensions: 205 x 205 x 33.2 mm

Package Includes:

• 1 ECW336 Cloud Managed Indoor Access Point
• 1 Ceiling Mount Base (9/16” Trail)
• 1 Ceiling Mount Base (15/16” Trail)
• 1 Ceiling and Wall Mount Screw Kit
• 1 Quick Installation Guide

The EnGenius ECW336 is an ideal solution for businesses seeking advanced Wi-Fi 6E performance, robust security, and flexible management options.
