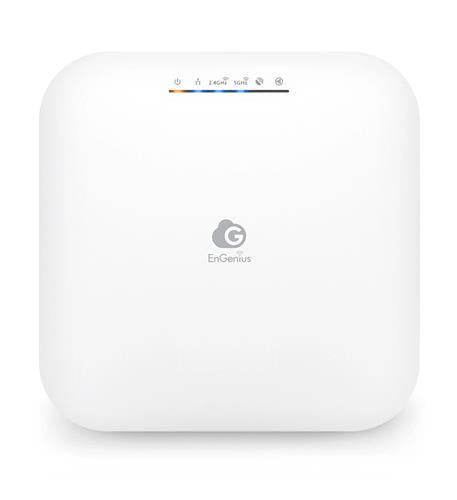

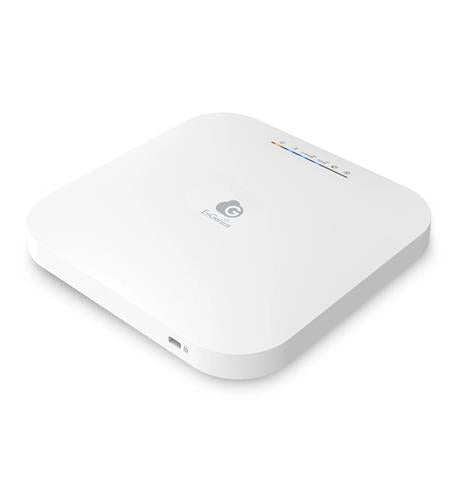

EnGenius ECW536 Cloud Managed Wi-Fi 7 4x4x4 Indoor Access Point

The EnGenius ECW536 is a Cloud Managed Wi-Fi 7 4x4x4 Indoor Access Point, delivering exceptional tri-band performance with support for 802.11be architecture. This access point provides supercharged speeds of up to 11,600 Mbps on the 6 GHz band, 5,800 Mbps on the 5 GHz band, and 1,400 Mbps on the 2.4 GHz band. With advanced security features and easy cloud management, the ECW536 is ideal for modern, high-demand business environments.

Key Features:

• High-Performance Wi-Fi 7:

  • Tri-concurrent 802.11be support
  • Up to 11,600 Mbps on 6 GHz, 5,800 Mbps on 5 GHz, and 1,400 Mbps on 2.4 GHz

• Advanced Connectivity:

  • 1 x 10GbE PoE++ port
  • 1 x 10GbE port
  • Supports Power over Ethernet (802.3bt) and 60W PoE injector input

• Robust Security:

  • Supports WPA3 & WPA2-AES authentication

• Efficient Management:

  • Cloud managed with quick-scan device registration and configuration
  • Remote monitoring and troubleshooting via the EnGenius Cloud App
  • Mesh Wireless Support for simplified setup and self-healing networks

Technical Specifications:

• Standards:

  • IEEE 802.11be on 2.4 GHz, 5 GHz, and 6 GHz
  • Backward compatible with 802.11a/b/g/n/ac/ax

• Antenna:

  • 4 x 2.4 GHz: 5 dBi (Integrated Omni-Directional)
  • 4 x 5 GHz: 6 dBi (Integrated Omni-Directional)
  • 4 x 6 GHz: 5 dBi (Integrated Omni-Directional)

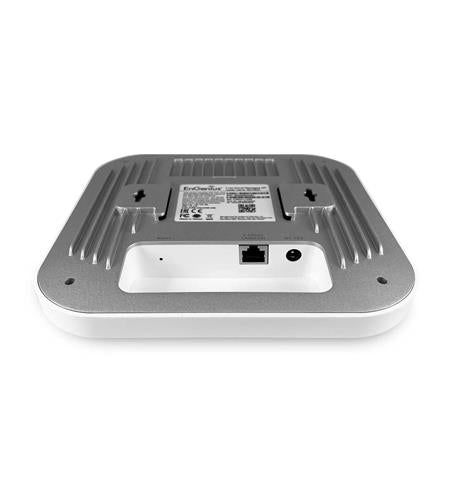

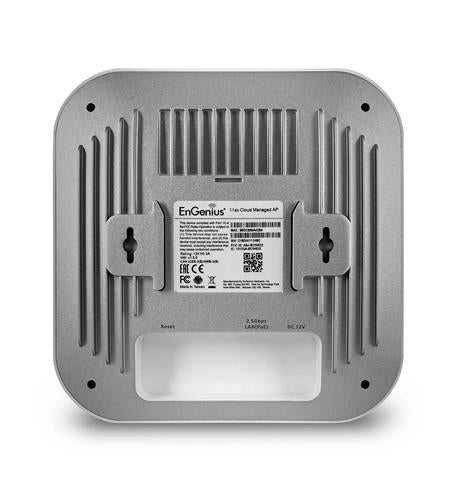

• Physical Interfaces:

  • 1 x 10GbE PoE++ port
  • 1 x 10GbE port
  • 1 x DC jack
  • 1 x reset button
  • 1 multi-color LED

• Power Source:

  • Power-over-Ethernet: 802.3bt Input
  • 12VDC /3A Power Adapter

• Maximum Power Consumption:

  • 38W

• Operating Frequency:

  • Tri-Radio Concurrent 2.4 GHz, 5 GHz, and 6 GHz

• Transmit Power:

  • Up to 25 dBm on 2.4 GHz
  • Up to 24 dBm on 5 GHz
  • Up to 24 dBm on 6 GHz

• Environmental Specifications:

  • Operating Temperature: 32ºF to 104ºF (0 ºC to 40 ºC)
  • Storage Temperature: -40 ºF to 176 ºF (-40 ºC to 80 ºC)
  • Humidity: 90% or less (non-condensing)

• Dimensions & Weight:

  • Weight: 1270 g
  • Dimensions: 230 x 230 x 39.5 mm

Package Includes:

• 1 ECW536 Cloud Managed Indoor Access Point

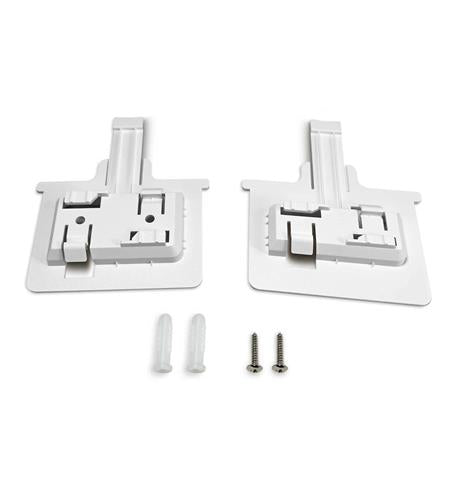

• 1 Ceiling Mount Base
• 1 Ceiling and Wall Mount Screw Kit
• 1 T-rail Mount kit
• 1 Product Card

The EnGenius ECW536 is designed to provide seamless and high-speed wireless connectivity, making it an excellent choice for businesses seeking advanced Wi-Fi 7 performance and robust management capabilities.
