EnGenius EnStation6 Outdoor 5GHz 2x2 Wi-Fi 6 Long Range CPE

The EnGenius EnStation6 is an outdoor, long-range CPE designed for high-performance and efficient Wi-Fi connectivity. Utilizing Wi-Fi 6 technology, it delivers up to 1,200 Mbps in the 5 GHz band. The integrated 19 dBi directional antenna and high 26 dBm transmit power extend wireless networks up to 5 miles point-to-point, making it ideal for outdoor environments.

Key Features:

• Wi-Fi 6 Technology:

  • Supports high-performance and efficient Wi-Fi in outdoor settings
  • Beamforming optimizes antenna signal, reception, and reliability

• High-Performance Antenna:

  • 2x2 directional antennas support up to 1,200 Mbps in 5 GHz
  • High gain 19 dBi integrated directional antenna

• Extended Range:

  • High 26 dBm transmit power extends Wi-Fi coverage up to 5 miles point-to-point

• Rugged Design:

  • IP55-rated weatherproof and dustproof housing

• Flexible Operation Modes:

  • Access Point, Station, WDS Access Point, WDS Station, Repeater

• Advanced Management:

  • Gigabit Ethernet PoE port supports flexible power options

Technical Specifications:

• Standards:
  • 802.11a/n/ac/ax
• Antenna:
  • 19 dBi
• Physical Interfaces:
  • 1 x 10/100/1000 BASE-T (Proprietary PoE)
  • 1 x 10/100/1000 BASE-T
• Power Source:
  • Proprietary 54V (EPA5006GR)
• Maximum Power Consumption:
  • PoE: Max. 11W
• Operating Frequency:
  • Single band 5 GHz
• Transmit Power:
  • 26 dBm
• Environmental Specifications:
  • Operating Temperature: -4º140ºF (-20ºC60ºC)
  • Storage Temperature: -40ºF176ºF (-40ºC80ºC)
  • IP Rating: IP55
  • Surge Protection: 1KV
  • ESD Protection: Contact: 4KV, Air: 8KV

Package Includes:

• 1 EnStation6 Outdoor CPE
• 1 EPA5006GR with AC cord

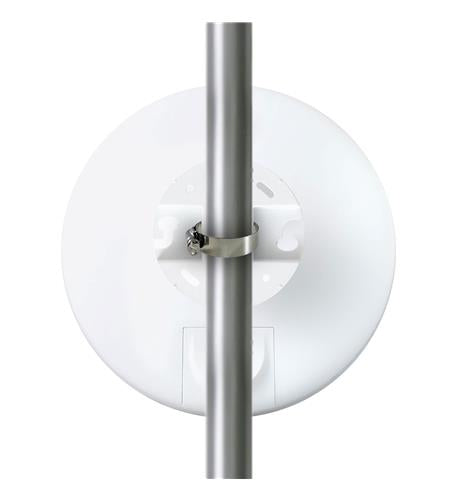

• 2 Pole-Mounting Brackets
• 1 Wall-Mount Screw Set
• 1 Quick Installation Guide

The EnGenius EnStation6 is ideal for extending Wi-Fi networks across large outdoor areas, providing reliable and high-speed connectivity.
