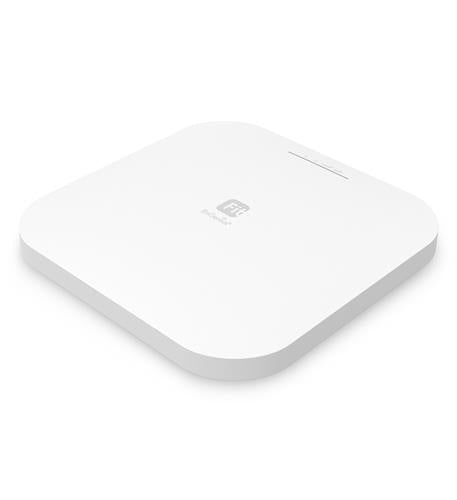

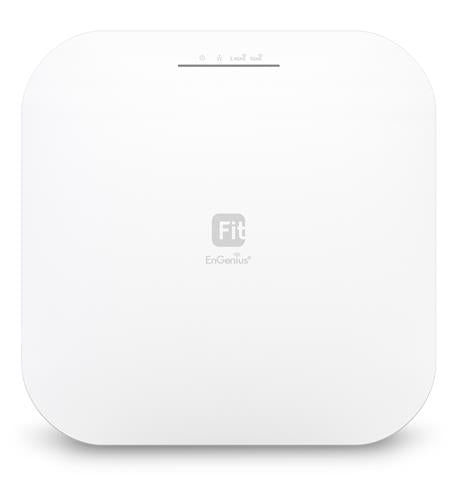

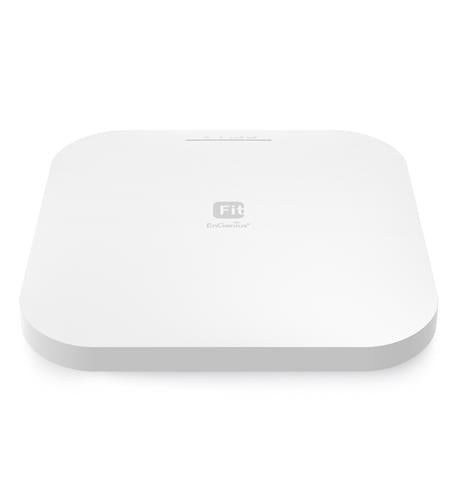

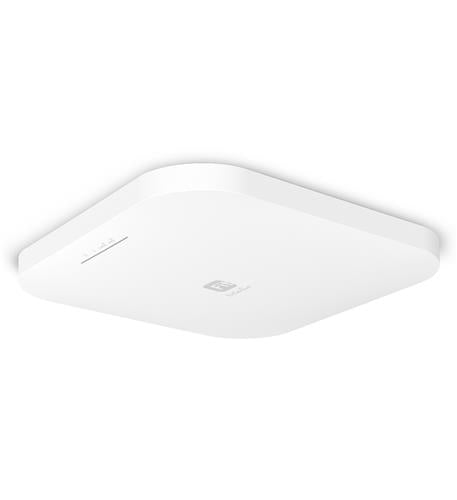

EnGenius EWS276-FIT Fit6 4x4 Lite Managed Indoor Wireless Access Point

The EnGenius EWS276-FIT is a Fit6 4x4 Lite Managed Indoor Wireless Access Point that leverages advanced 802.11ax technology to deliver high-speed and efficient wireless performance. Designed for modern business environments, it provides a maximum theoretical speed of 2,400 Mbps on the 5 GHz frequency band and 1,148 Mbps on the 2.4 GHz frequency band. The EWS276-FIT supports WPA3 and WPA2-AES encryption protocols for unparalleled security.

Key Features:

• High-Performance Wi-Fi 6:

  • Dual concurrent 802.11ax architecture, backward-compatible with 802.11ac/a/b/g/n client devices
  • Speeds up to 2,400 Mbps on 5 GHz and 1,148 Mbps on 2.4 GHz

• Robust Security:

  • Supports WPA3 and WPA2-AES authentication

• Advanced Connectivity:

  • 1x 2.5 GE PoE+ port for flexible power options

• Flexible Management:

  • Local and remote management via FitController without fees
  • Supports AP and WDS modes

Technical Specifications:

• Standards: 802.11a/b/g/n/ac/ax

• Antenna Gain: 5 dBi integrated 4x4 antenna

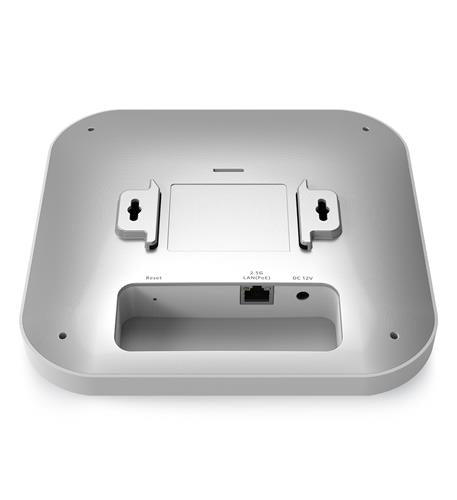

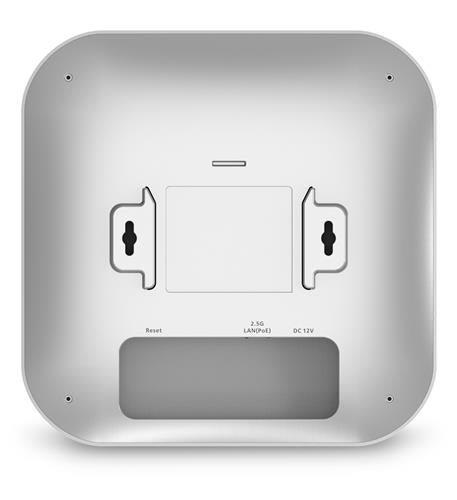

• Physical Interfaces:

  • 1x 10/100/1000/2500 BASE-T
  • DC12V power input
  • Reset/reboot button
  • LED indicators (Power, LAN, 2.4 GHz, 5 GHz)

• Power Source: PoE 802.3at, DC12V

• Max Power Consumption: 17W

• Operating Frequency: Dual-Radio Concurrent 2.4 GHz & 5 GHz

• Transmit Power: Up to 23 dBm on 2.4 GHz and 5 GHz

• Radio Chains: 4 × 4:4

• SU-MIMO: Four spatial streams for up to 1,148 Mbps on 2.4 GHz and 2,400 Mbps on 5 GHz

• MU-MIMO: Four spatial streams for transmitting to multiple 11ax capable wireless client devices simultaneously

Environmental & Physical:

• Operating Temperature: 32ºF104ºF (0 ºC40 ºC)
• Storage Temperature: -40 ºF176 ºF (-40 ºC80 ºC)
• Humidity: 90% or less (non-condensing)
• Weight: 570 g
• Dimensions: 205 x 205 x 33 mm

Package Includes:

• 1 EWS276-FIT Indoor Access Point
• 1 Ceiling Mount Base (9/16” Trail)
• 1 Ceiling Mount Base (15/16” Trail)
• 1 Ceiling and Wall Mount Screw Kit
• 1 Quick Installation Guide

The EnGenius EWS276-FIT is ideal for businesses seeking high-performance Wi-Fi 6 connectivity with robust security and flexible management options.
