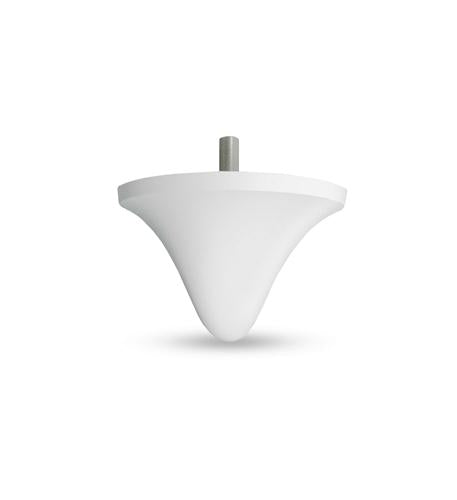

EnGenius SN-UL-AK20L-IND Indoor Ceiling-Mount Antenna

The EnGenius SN-UL-AK20L-IND is an indoor ceiling-mount antenna designed for robust wireless coverage in large indoor spaces. This external antenna operates within the 863-930 MHz frequency band, making it ideal...
Vendor: EnGenius
SKU: SN-UL-AK20L-IND
Availability: In Stock
$329.99
$329.99
Subtotal: $329.99
EnGenius SN-UL-AK20L-IND Indoor Ceiling-Mount Antenna

EnGenius SN-UL-AK20L-IND Indoor Ceiling-Mount Antenna

$329.99

EnGenius SN-UL-AK20L-IND Indoor Ceiling-Mount Antenna

$329.99

The EnGenius SN-UL-AK20L-IND is an indoor ceiling-mount antenna designed for robust wireless coverage in large indoor spaces. This external antenna operates within the 863-930 MHz frequency band, making it ideal for environments such as warehouses and retail stores. Its durable design and high performance ensure reliable connectivity across extensive areas.

Key Features:

  • Frequency Range:

    • Operates within 863-930 MHz
  • High Gain:

    • Peak gain of 2.1 dBi at 863-865 MHz and 2.7 dBi at 900-930 MHz
  • Durable Construction:

    • Made from ABS material with UL94V0 rating
    • Operating temperature range from -20°C to 65°C
  • Optimized Performance:

    • Half power beam width of 83°±3°
    • Linear, vertical polarization
    • Impedance of 50 Ohm
  • Installation:

    • Ceiling-mount design for optimal performance
    • Easy installation with N Jack connector

Technical Specifications:

  • VSWR: 2.0:1 (Max)
  • Power Handling: 10W (cw)
  • Connector: N Jack
  • Dimensions: Ø170 x 108 mm
  • Weight: 320g

Environmental & Mechanical Characteristics:

  • Temperature: -20°C to 65°C
  • Radome Color: White
  • Radome Material: ABS, UL94V0

Applications:

  • Ideal for indoor use, covering areas such as 50,000 to 100,000 sq. ft. warehouses and retail stores
  • Best performance achieved when mounted as high as possible on the ceiling
