G-TEL Enterprises, Inc. HS-DYN-V1-SPD-32 Dynamic Handset V1 with Spade Connectors

G-TEL HS-DYN-V1-SPD-32 Dynamic Handset V1 is a durable handset with a high-quality receiver and dynamic microphone. HS-DYN-V1-SPD-32 Handset Features: Handset type: SD-45150H20 Standard Receiver and DT-05 Dynamic Type 1 Transmitter...
SKU: HS-DYN-V1-SPD-14
Availability: In Stock
$36.34
$36.34
Length: 14"
Restock Fee: I Accept a 35% Restock Fee on Return
Subtotal: $36.34
G-TEL Enterprises, Inc. HS-DYN-V1-SPD-32 Dynamic Handset V1 with Spade Connectors

G-TEL Enterprises, Inc. HS-DYN-V1-SPD-32 Dynamic Handset V1 with Spade Connectors

$36.34

G-TEL Enterprises, Inc. HS-DYN-V1-SPD-32 Dynamic Handset V1 with Spade Connectors

$36.34
Length: 14"
Restock Fee: I Accept a 35% Restock Fee on Return

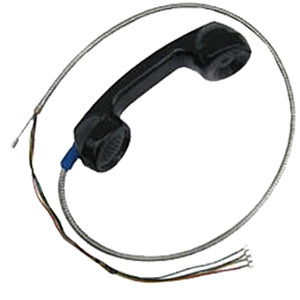

G-TEL HS-DYN-V1-SPD-32 Dynamic Handset V1 is a durable handset with a high-quality receiver and dynamic microphone.
HS-DYN-V1-SPD-32 Handset Features:
  • Handset type: SD-45150H20 Standard Receiver and DT-05 Dynamic Type 1 Transmitter
  • Handset handle and cap material: ABS
  • Wiring: Four 24 gauge Teflon insulated wires (2 for receiver, 2 for transmitter), with 4 spade conductors
  • Armored Cord Assembly.: 304 Stainless Steel, Interlock style. Inside Diameter, 0.250", 6.350mm. Outside Diameter, 0.329", 8.357mm. Linear Pull Test Load, 1000 lbs., 454 kg
  • Includes steel lanyard which is anchored to handset handle. Steel lanyard has a pull test load of approx. 550 lbs, 250 kgs.
  • Other Components: Lanyard block retainer; anti-rotation wedge; transmitter holder; blue rubber grommet to seal handset/cord connection
  • Receiver Specifications:
    • DC Resistance at 20 degress C : 145 ‚± 15 ohm
    • Frequency Response Range: 300-3400 Hz
    • Sensitivity: 100 ‚± 2 dB at 60mv
    • Impedance: 150 ‚± 30 ohm at 1 KHz
  • Transmitter Specifications:
    • Type : Dynamic Type Transmitter
    • Response Range : -66 ‚± 3.5dBV(300-3300Hz)
    • Frequency Response : 1KHz: -66 ‚± 3.5 dbV
    • Impedance : 150 ‚± 30 ohm
    • Electrostatic Discharge : Breakdown Volt. 15KV.Min
    • Screw terminal
