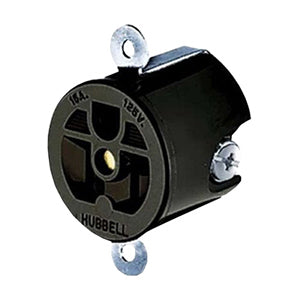

Hubbell HBL5258 Compact Heavy Duty Straight Blade Receptacle

Compact Heavy Duty Straight Blade Receptacle 15 amp, 125 volt. HBL5258 Features: NEMA 5-15R Horsepower 0.5 2 Pole, 3 Wire, Grounding 15A, 125V UL Listed File E2186, Guide Fed. Spec....
Vendor: Hubbell
SKU: HBL5258
Availability: In Stock
$21.25
$21.25
Subtotal: $21.25
Hubbell HBL5258 Compact Heavy Duty Straight Blade Receptacle

Hubbell HBL5258 Compact Heavy Duty Straight Blade Receptacle

$21.25

Hubbell HBL5258 Compact Heavy Duty Straight Blade Receptacle

$21.25
Compact Heavy Duty Straight Blade Receptacle 15 amp, 125 volt.
HBL5258 Features:
  • NEMA 5-15R
  • Horsepower 0.5
  • 2 Pole, 3 Wire, Grounding
  • 15A, 125V
  • UL Listed File E2186, Guide Fed. Spec. WC 596F, Listed to UL Standard 498. Certified to CSA 22.2, No. 42 where applicable
  • Terminal Screw Material #8-32 Brass /Ni plated for neutral
  • Ground Screw Material #8-32 Brass, Multiple Drive (Green)
  • Material Nylon
  • Base Material Melamine
  • Power Contacts Material .032" (.8) Brass
  • Mounting Strap Material .050" (1.3) Brass
  • Mounting Screw Material Steel-Zinc Plated
  • Dielectric Voltage Withstands 2,000V minimum
  • Current Interrupting Certified for current interrupting at full rated current
  • Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green)
  • Terminal Accommodation #14-#10 AWG copper stranded or solid conductor only
