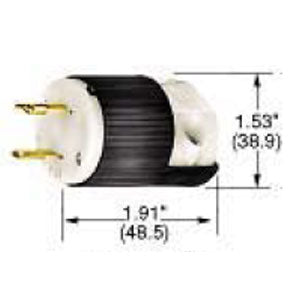

Hubbell HBL7545C 2-Pole, 2-Wire Non-Grounding Twist-Lock Plug

Non-Grounding Twist-Lock Plug is 2P2W, 15A 125V, L1-15P, Black and White Nylon. Plug Features: Product Type: Twist-Lock Devices Product Item: Plug Wiring Scheme: 2-Pole, 2-Wire Non-Grounding Amperage: 15A Voltage: 125V...
Vendor: Hubbell
SKU: HBL7545C
Availability: In Stock
$21.67
$21.67
Subtotal: $21.67
Hubbell HBL7545C 2-Pole, 2-Wire Non-Grounding Twist-Lock Plug

Hubbell HBL7545C 2-Pole, 2-Wire Non-Grounding Twist-Lock Plug

$21.67

Hubbell HBL7545C 2-Pole, 2-Wire Non-Grounding Twist-Lock Plug

$21.67
Non-Grounding Twist-Lock Plug is 2P2W, 15A 125V, L1-15P, Black and White Nylon.
Plug Features:
  • Product Type: Twist-Lock Devices
  • Product Item: Plug
  • Wiring Scheme: 2-Pole, 2-Wire Non-Grounding
  • Amperage: 15A
  • Voltage: 125V AC
  • NEMA Configuration: L1-15P
  • Item Style: Standard
  • Device Color: Black/White
  • Horsepower: 0.5
  • Cord Diameter: .230"-.720" (5.8-18.3)
  • Blade Holder Material: Natural White Nylon
  • Terminal Retainer Material: Clear polycarbonate
  • Housing Material: Black nylon
  • Cord Clamp Material: Natural (white) nylon
  • Blade Material: Brass
  • Terminal Clamp Material: Cold rolled steel-nickel-plated
  • Terminal Screw Material: #8-32 Brass (white finish on neutral screw when used)
  • Cord Clamp Screw Material: Steel-zinc-plated
  • Body Holding Screw Material: Steel-zinc-plated
  • Ratings: Molded In or Stamped On
  • Catalog No: Permanently ink marked on product
  • Dielectric Voltage Withstand: 2000V minimum
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
  • Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
  • Terminal Accommodation: 15A #14 AWG
  • Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
  • Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
  • Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
  • Moisture Resistance: IP20
  • Listings: UL
