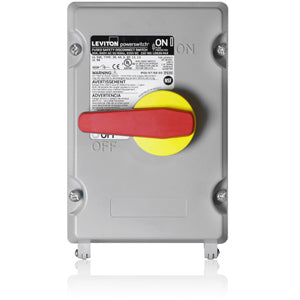

Leviton LDS30-FAX 30 Amp Fused PowerSwitch Disconnect Switch

Leviton Roll over to zoom 30 Amp Fused PowerSwitch Disconnect Switch,600 Volt, Non-Metallic Enclosure. LDS30-FAX Electrical Specifications: Amperage: 30 Max Voltage: 600 VAC Horsepower Single Phase: 110 VAC 2HP, 208...
Vendor: Leviton
SKU: LDS30-FAX
Availability: In Stock
$698.71
$698.71
Subtotal: $698.71
Leviton LDS30-FAX 30 Amp Fused PowerSwitch Disconnect Switch

Leviton LDS30-FAX 30 Amp Fused PowerSwitch Disconnect Switch

$698.71

Leviton LDS30-FAX 30 Amp Fused PowerSwitch Disconnect Switch

$698.71
Leviton Roll over to zoom 30 Amp Fused PowerSwitch Disconnect Switch,600 Volt, Non-Metallic Enclosure.

LDS30-FAX Electrical Specifications:
  • Amperage: 30
  • Max Voltage: 600 VAC
  • Horsepower Single Phase: 110 VAC 2HP, 208 to 240 VAC 3 HP, 480 VAC 3 HP, 600 VAC 3 HP
  • Horsepower Three Phase: 208 to 240 VAC 7.5 HP, 480 VAC 15 HP, 600 VAC 20 HP
  • Current Interrupting: Certified for full-rated current and voltage
  • Dielectric Voltage: 1,000 V plus twice rated voltage for 1 minute
  • Minimum Electrical Endurance: 6,000 operating cycles at rated current and voltage
  • Mechanical Endurance: 20,000 Operations (10,000 Operation Cycles)
  • Short Circuit Current Rating (SCCR): 200 kA; Fuse Type J; Fuse Size 30A
Envirnmental Specifications:
  • Flammability: UL94V-0
  • Operating Temperature: -40°C to 75°C (Derating may apply)
  • Water/Moisture Resistance: NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13, IEC IP66, IP67, IP68,, IP69, IP69K
  • Impact Resistance: Meet UL746C
Material Specifications:
  • Enclosure: PBT+PC
  • Handle: PBT+PC with TPE Overmold
  • Enclosure Screws: Stainless Steel
  • Enclosure Gasket: Silicone Rubber
  • Mounting Feet: PBT+PC
