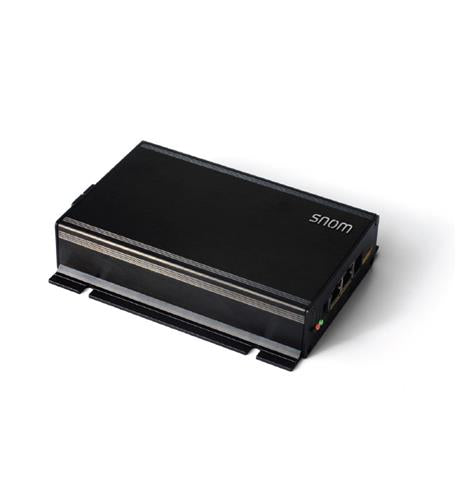

snom PA1+ SIP-Based Public Announcement System with PoE and HD Audio

The snom PA1+ is a versatile SIP-based public announcement system designed to expand your SIP PBX into a broadcasting system. Ideal for HD audio announcements and background music, the PA1+...
Vendor: Snom
SKU: PA1PLUS
Availability: In Stock
$170.00
$170.00
Subtotal: $170.00
snom PA1+ SIP-Based Public Announcement System with PoE and HD Audio

snom PA1+ SIP-Based Public Announcement System with PoE and HD Audio

$170.00

snom PA1+ SIP-Based Public Announcement System with PoE and HD Audio

$170.00

The snom PA1+ is a versatile SIP-based public announcement system designed to expand your SIP PBX into a broadcasting system. Ideal for HD audio announcements and background music, the PA1+ integrates seamlessly with existing speaker systems or can be used with standalone speakers. The device features a high-performance 6.5-watt amplifier, ensuring clear and powerful sound in large areas. It also includes configurable relay contacts for remote control via SIP or DTMF, making it suitable for integrating door opening systems and enhancing security setups with additional network components like LAN cameras.

Key Features:

  • Powerful Audio Output:

    • Integrated 6.5-watt amplifier for large rooms
    • Supports existing and larger PA systems via connections
  • Advanced Connectivity:

    • Power over Ethernet (PoE) for simplified installation
    • Dual gigabit Ethernet ports
  • Flexible Integration:

    • Configurable relay contacts for remote control
    • Compatible with existing door opening systems and security components
  • High Security Standards:

    • TLS and SRTP encryption for secure communication
    • SHA 2 encryption support
  • Easy Setup and Management:

    • Plug & Play with automatic configuration
    • Menu-driven web user interface (WUI)
    • Over-the-air updates via HTTP/HTTPS/TFTP

Technical Specifications:

  • Audio Output:

    • Amplifier: 6.5 W, class D, 8 Ω impedance
    • Line out: 600 Ω
    • Supported codecs: G.711, G.722, G.723.1, G.726, G.729, Opus
  • Power Options:

    • PoE (IEEE 802.3af, class 3)
    • Optional 5V DC power adapter (100-240 V AC, 50-60 Hz, 2 A, 10 W)
  • Interfaces and Connections:

    • 2 x RJ45-8P8C Ethernet ports (1 Gbit/s)
    • 2 x 3.5 mm miniature audio jacks
    • RJ12 connector for maintenance
    • Loudspeaker terminal (+/-)
    • Proprietary sockets for external keyboard and I/O devices
  • Networking:

    • IPv4/IPv6 dual stack, DHCP, NTP, LDAP, HTTP, FTP, TFTP, L2TP
    • Secure VoIP and network protocols: SIPS, SRTP, TLS V1.2
  • Dimensions and Weight:

    • Size: 165 mm × 104 mm × 35 mm (175 mm with connectors)
    • Weight: 400 g
  • Indicators and Keys:

    • 2 LED indicators (green for call status, red for power status)
    • Dedicated function key for reset/IP address announcement

Package Includes:

  • PA1+ unit
  • Wall mount plate and screws
  • Wire set
  • Quick Installation Guide (QIG)
  • GNU General Public License
  • Drill template

The snom PA1+ is perfect for businesses needing a reliable and secure public announcement system that integrates seamlessly with their existing SIP PBX infrastructure.
