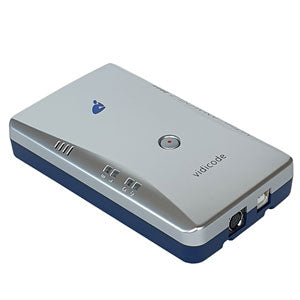

Vidicode 010-02511 V-Tap Analog II

The V-Tap Analog II is a hardware and software solution for the recording of telephone calls. The supplied hardware unit can record the audio from an analog telephone line or...
Vendor: Vidicode
SKU: 010-02511
Availability: Out Of Stock
$515.00
$515.00
Subtotal: $515.00
Vidicode 010-02511 V-Tap Analog II

Vidicode 010-02511 V-Tap Analog II

$515.00

Vidicode 010-02511 V-Tap Analog II

$515.00

The V-Tap Analog II is a hardware and software solution for the recording of telephone calls. The supplied hardware unit can record the audio from an analog telephone line or any telephone that works with a cord-connected handset.  Usually ships in 2 weeks.

V-Tap-Analog II Features:
  • Recording: analog telephone calls and analog audio
  • Caller ID detection: via DTMF or FSK if available
  • SD-card slot: yes, storage of WAV files
  • Wi-Fi: supported
  • LAN: RJ45
  • PABX: RJ10
  • PHONE: RJ12
  • Audio connector type: 3.5 mm circular TRS
  • Connector function set by switch: Stereo OUT, Mono
  • IN+OUT, Stereo IN
  • Switch position#1: Stereo OUTPUT
  • Switch position#2: Mono INPUT+OUTPUT
  • Switch position#3: Stereo INPUT
  • Level: 1- 700 mV RMS (software setting)
  • Impedance: 2500 Ohm
  • Bandwidth: 4 or 8 or 16 KHz
  • Phantom power: 2.2V DC
  • AGC: Limiter range>40 dB with Noise Gate
  • Level detector range: Available, Range 0-250 mV RMS
  • Primary use: Electret Microphone
  • Level: 50 – 2000 mV RMS (software setting)
  • Impedance: 150 Ohm
  • Bandwidth: 4 or 8 or 16 KHz
  • Primary use: Amplified Speaker
  • USB Version: V2.0 High Speed (480 Mbps)
  • USB Profile: Generic HID (VID: 0DE1 / PID: 5202)
  • USB Current: 5V @ 500mA (Max. 3 W)
  • USB Connector: Full size 'B'- type
  • Power Supply: USB powered
  • Button: One button, see manual for button functions
  • LEDs: Four LEDs, see manual for LED functions
  • Dimensions (L x W x H): 137 x 81 x 30 mm
  • Housing material: Silver and Blue, 4 pieces soft rubber footpads
  • Weight: 150 grams
  • Temperature Range: 0 – 40 °C
  • Humidity Range: 10 – 90 %, non-condensing
