Description

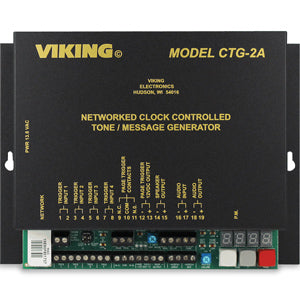

Viking's model CTG-2A is a networked clock controlled tone/message generator designed to provide accurately timed tones and/or messages over your existing paging system. This provides a cost effective way of signaling school period changes, factory shifts, breaks, lunch periods, etc.
CTG-2A Features:
  • Up to 14 Schedules and up to 1,000 Events
  • 6 minutes of CD quality WAV file record time
  • Up to 14 different tones or messages
  • 4 programmable trigger inputs for emergency tones, etc.
  • Automatic day light savings time and leap year correction
  • Programmable NTP Clock synchronization
  • PC programming software included
  • RS485 clock SYNC terminals for remote Master Clock control of Viking CL Series RF synchronized clocks
  • Non-volatile memory with 4 day clock back up
  • Factory loaded with school/factory tones and evacuation signals (ANSI S3.41), etc.
  • Remote program via TCP/IP network
  • Page trigger outputs (12VDC and DPDT relay)
  • Programmable Auxiliary relay contacts (DPDT)
  • 24 hour digital clock displays hours & minutes
  • One mono line level pre-amp input and audio output
  • Built-in 2 watt mono audio amplifier
  • One isolated audio output for PABX / dial access paging
  • Master volume control
  • Programmable volume control per tone/message
  • Time base selection: Network, 50/60Hz or internal
  • Programmable message repeat count for trigger inputs
  • Internal Clock Backup Time: 4 hours
  • Dimensions: 210mm x 159mm x 45mm (8.25" x 6.25" x 1.75")
  • Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
  • Preamp (Audio 1/2) Output: 6V RMS across 600 ohms
  • Paging Amplifier Output: 2 watts - powers up to (3) 8 ohm or (16) 45 ohm speakers
  • Sound Pressure: 100 dB @ 1 meter (loud electronic warble from 25AE paging horn)
Applications:
  • Signal the beginning and end of class periods, breaks and lunch periods for schools
  • Signal the beginning and end of shifts, breaks and lunch periods for factories/businesses
  • Provide trigger controlled emergency alert messages for fire, flood, severe weather, lock down, etc.
  • Provide messages at specific times for store sales, promotions, closing times, etc.
  • Provide Auxiliary contact activation at specific times for specific durations for controlling lights, cameras, unlocking doors/gates, etc.
