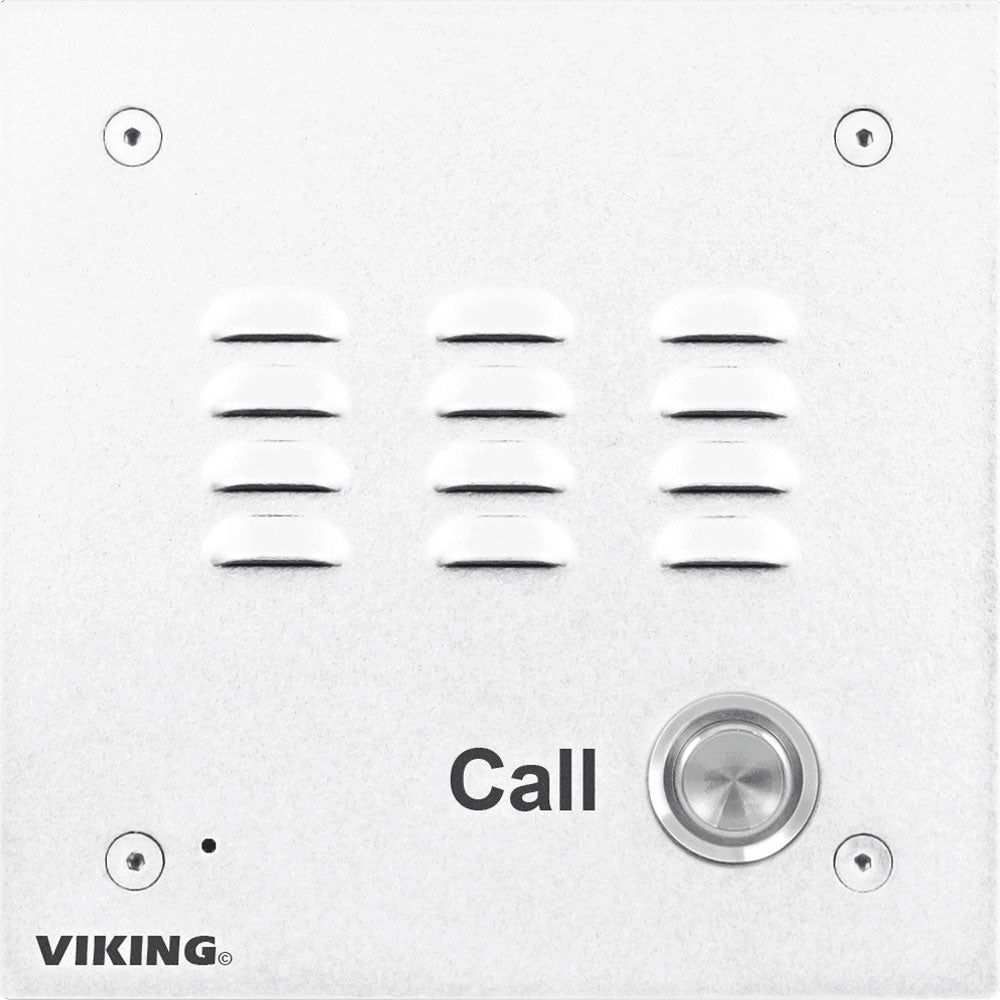

Viking E-10-WHA Entry Phone with White Aluminum Faceplate

The E-10-WHA is a telephone line powered door entry phone designed to provide two-way handsfree communication. E-10-WHA Features: Alternate action call button to place or cancel a call Intelligent call...
Vendor: Viking
SKU: E-10-WHA
Availability: In Stock
$149.14
$149.14
Subtotal: $149.14
Viking E-10-WHA Entry Phone with White Aluminum Faceplate

Viking E-10-WHA Entry Phone with White Aluminum Faceplate

$149.14

Viking E-10-WHA Entry Phone with White Aluminum Faceplate

$149.14
The E-10-WHA is a telephone line powered door entry phone designed to provide two-way handsfree communication.

E-10-WHA Features:
  • Alternate action call button to place or cancel a call
  • Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
  • Telephone line powered
  • Adjustable microphone and speaker volume
  • Programmable maximum call length
  • Selectable auto-answer feature allows remote monitoring
  • Two-way handsfree communication
  • Programmable VOX (mic / speaker) switching speed
  • Vandal resistant white powder painted aluminum faceplate with heavy duty 316 stainless steel call button and mounting gasket
  • Flush mount using the included rough-in box or surface mount using a Model # VE-5X5 Surface Mount Box
Applications:
  • Door or gate communication, business delivery entrances
  • Provide unique front and back door chimes and paging when used with a Viking C-2000B and a Viking SLP-1 or SLP-4
  • Residential, commercial, and industrial door security
  • Use with a Viking Model # K-1900-5 or Model # K-1900-30 for automatic speed dialing on telephone lines or analog PABX / KSU station ports
  • Use on any analog PABX station port with programmable ring down capability
Specifications:
  • Power: Telephone line powered (18VDC / 20mA minimum)
  • Overall Dimensions: 5" x 5" x 2.25" (127mm x 127mm x 57.2mm)
  • Rough-In Box Dimensions: 4" x 4" x 2.15" (102mm x 102mm x 55mm)
  • Operating Temperature: -30°F to 150°F (-34°C to 65°C)
  • Humidity: 5% to 95% non-condensing
  • Maximum Speaker Volume: 70dB SPL @ 1m
  • Ring Voltage: 25VRMS minimum
  • Minimum CPC Disconnect Time: 300ms
  • REN: 0.8A
  • Connections: (2) Gel-filled butt connectors
