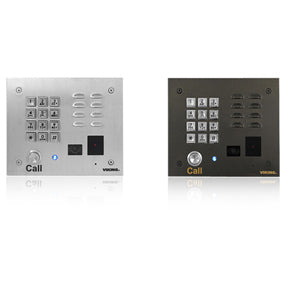

Viking K-1775-3 Stainless Steel Handsfree Video Entry Phone with Built-In Keypad and Proximity Card Reader

Viking K-1775-3 Stainless Steel Handsfree Video Entry Phone with Built-In Keypad and Proximity Card Reader

The K-1775 Series video entry phones provide a durable and attractive hands-free phone for apartment and residential door entry or applications requiring a vandal resistant speaker phone with integrated color...
Vendor: Viking
SKU: K-1775-3-EWP
Availability: In Stock
$1,148.76
$1,148.76
Finishes: Stainless Steel
Weather Protection: Enhanced
Ask An Expert
Subtotal: $1,148.76
Viking K-1775-3 Stainless Steel Handsfree Video Entry Phone with Built-In Keypad and Proximity Card Reader

Viking K-1775-3 Stainless Steel Handsfree Video Entry Phone with Built-In Keypad and Proximity Card Reader

$1,148.76
Viking K-1775-3 Stainless Steel Handsfree Video Entry Phone with Built-In Keypad and Proximity Card Reader

Viking K-1775-3 Stainless Steel Handsfree Video Entry Phone with Built-In Keypad and Proximity Card Reader

$1,148.76
Finishes: Stainless Steel
Weather Protection: Enhanced
Description
The K-1775 Series video entry phones provide a durable and attractive hands-free phone for apartment and residential door entry or applications requiring a vandal resistant speaker phone with integrated color video camera and 125 KHz Proximity Card Reader.

K-1775-3 Features:
  • Apartment entry phone when used with the K-1900-3 Apartment Entry Dialer or C-4000 Apartment/Office Entry Controller or C-3000 Apartment Entry Controller
  • Use with a Viking C-500 to control 1 or 2 (expandable to 8) K-1700's and door/gate control on a single phone line
  • Use with a Viking C-2000B to control 1 to 4 K-1775's and door/gate control on a single phone line
  • Courtesy and customer assistance phone
  • Automated teller (ATM) phone
  • Security or emergency phone
  • Hot-Line phone when used with the K-1900-5 Hot-Line Dialer
  • Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
  • Kiosk phone with (100 number speed dialing) when used with the K-1900-9 Multi-Number Dialer
  • Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card read confirmation and EWP board protection
  • Built-in high resolution color video camera with wide viewing angle, tilt/swivel adjustments, and wide operating temperature of -30° F to 150° F
  • Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics, stainless steel "Call" button, heavy duty metal keypad and T-10 Torx Security mounting Screws, scratch resistant powder coating (K-1775-3-BN)
  • Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws and push button switch. Switch internally sealed per IP67
  • Mylar speaker, Self-draining mic mount, Faceplate, mic and speaker gaskets, Weather Resistant powder paint (K-1775-3-BN)
  • K-1775-3-EWP is designed to meet IP66 Ingress Protection Rating
  • Available in 2 standard faceplate finishes: 316 brushed stainless steel or oil rubbed bronze
  • Blue "œin use" LED
  • Telephone line powered
  • Volume adjustments for microphone and speaker
  • Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
  • Selectable auto-answer feature for monitoring
  • Selectable push button disconnect
  • Volume adjustments for microphone and speaker
  • Selectable auto-answer feature for monitoring
  • Zinc plated steel rough-in box with (2) 3/4" conduit knockouts
  • Optional VE-6X7 Surface Mount Box available
  • Selectable VOX switching speed

Specifications:
  • Power: Telephone line powered 20V DC/20mA minimum
  • Dimensions: Overall: 140mm x 165mm x 66mm (5.5" x 6.5" x 2.6") , Rough-in box: 114mm x 140mm x 64mm (4.5" x 5.5" x 2.5")
  • Environmental: -29°C to 54°C (-20°F to 130°F)
  • Humidity - K-1770-3: 5% to 95% non-condensing
  • Humidity - K-1770-3-EWP: Up to 100% condensing
  • Speaker Volume: Approximately 70 db maximum @1m
  • Connections: Gel-filled tip and ring connectors
  • CPC Disconnect Time: 500ms minimum
  • REN #: 0.5 A

Camera Specifications:
  • Power: 6-22V DC 150mA (12V DC UL Listed adapter included)
  • Image Sensor: 1/4" color CMOS "¢ Video Output: 1 VP-P composite, NTSC, 75 ohms
  • Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)
  • Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K
  • Lens: 2.1mm, conical pinhole
  • FOV(Field of View): 80° Horizontal, 60° Vertical, 100° Diagonal
  • Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see Diagram A)
  • IR Compatibility: This camera is equipped with an OLP (Optical Low Pass) filter to maintain correct video color in outside applications
  • The standard camera is NOT compatible with IR illuminators
  • If IR illumination is required, you will need to replace the exisiting camera with a Viking model VCAM-1IR
  • Maximum Wire Run Length: See product manual (see manual)

    • Proximity Card Reader Specifications:
    • Power: 5 to 14V DC @ 60mA maximum
    • Maximum Cable Length: 500 ft 24 Awg stranded shielded (Belden 9537)
    • Frequency: 125KHz
    • Format: 26 bit Wiegand
    • Read Range: 1.25" to 2.0"
    • Technologies Supported: Viking PRX-C, PRX-C-ISO, PRX-FOB
    • Transducer: Beeps during card read
    • LED: Red, turns off during card read
    • Humidity: Up to 100% (fully potted EWP)
    • Operating Temperature: -34° C to 65° C (-30° F to 150° F)
