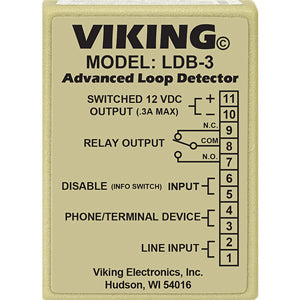

Viking LDB-3 Advanced Loop and Ring Detect Board

Advanced Loop and Ring Detect Board monitors an analog phone line for ringing or an off hook condition. Features: Ideal for monitoring line status and providing a visual indication of...
Vendor: Viking
SKU: LDB-3
Availability: In Stock
$57.71
$57.71
Subtotal: $57.71
Viking LDB-3 Advanced Loop and Ring Detect Board

Viking LDB-3 Advanced Loop and Ring Detect Board

$57.71

Viking LDB-3 Advanced Loop and Ring Detect Board

$57.71
Advanced Loop and Ring Detect Board monitors an analog phone line for ringing or an off hook condition.
Features:
  • Ideal for monitoring line status and providing a visual indication of it
  • On/off switches for ring detection and off hook/loop detection
  • Detects ring voltage and loop connect
  • Screw terminal connections
  • Wall mountable with foam tape (included) or screws (not included)
  • Switched 12V DC output (follows relay activation for powering strobe lights, cameras, etc.)
  • One set of (NO) normally open and (NC) normally closed relay contacts provided
  • Disable input, ideal for use with two-button emergency phones, will not activate relay on "Info" calls
  • 12V DC power adapter included
  • Minimum Loop Current: 15 mA
  • Disable/Info Switch Input: 50mA/80mW maximum
  • Ringer Equivalence: 0.5 A REN
  • Connections: 10 pin screw terminal block
