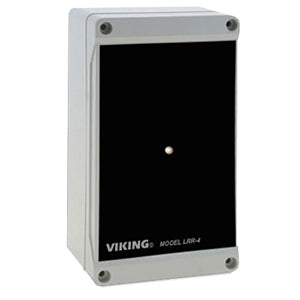

Viking LRR-4 Long Range 4 Channel Receiver

Viking LRR-4 Long Range 4 Channel Receiver

Viking's model LRR-4 Long Range 4 Channel Receivers with integrated receive antenna and LRT-4 Long Range Wireless 4 Channel Radio Transmitters comprise Vikings high frequency, long-range (RFID) identification solution. LRR-4...
Vendor: Viking
SKU: LRR-4
Availability: In Stock
$444.93
$444.93
Ask An Expert
Subtotal: $444.93
Viking LRR-4 Long Range 4 Channel Receiver

Viking LRR-4 Long Range 4 Channel Receiver

$444.93
Viking LRR-4 Long Range 4 Channel Receiver

Viking LRR-4 Long Range 4 Channel Receiver

$444.93
Description
Viking's model LRR-4 Long Range 4 Channel Receivers with integrated receive antenna and LRT-4 Long Range Wireless 4 Channel Radio Transmitters comprise Vikings high frequency, long-range (RFID) identification solution.

LRR-4 Features:
  • Read range of up to 500 ft (line of sight)
  • Secure, digital, anti-playback wireless communications
  • 4 channels of 26 Bit Wiegand data output
  • Optional external antenna connector
  • LED and transducer transmitter feedback
  • Adjustable Read Range
  • Removable terminal block for easy wiring
  • Cable grommet included for sealing cable exit
Applications:
  • Use the LRR-4 with the following Viking models to remotely activate relays for door,gate control, etc
  • AES-2000 - Accessible Entry System
  • AES-2005 - Accessible Video Entry System
  • C-4000 - Apartment / Office Entry Controller
  • ES-1 - Stand Alone Keyless Entry System
  • ES-3 - Entry System Door Controller
  • K-1200-IP - VoIP 12 Button Apartment Entry Phone
  • K-1205-IP - VoIP Apartment Entry Phone with Camera
  • K-1270-IP - VoIP Entry Phone with Card Reader
  • K-1275-IP - VoIP Entry Phone with Camera/Card Reader
  • K-1700-IP - VoIP Entry Phone with Keypad
  • K-1705-IP - VoIP Entry Phone with Keypad/Camera
  • K-1770-IP - VoIP Entry Phone with Keypad/Card Reader
  • K-1775-IP - VoIP Entry Phone with Camera/Card Reader
  • K-1770-3 - Entry Phone with Keypad and Card Reader
  • K-1775-3 - Entry Phone with Camera and Card Reader

Specifications:
  • Cable Requirements: 24 AWG minimum, multi-conductor stranded with an overall foil shield, for example Belden 9540 or similar. Per the SIA's Wiegand specification, maximum cable length is 500 feet (152.4 m)
  • Grounding: Shield (drain) continuity must run from the Receiver to the access panel. Shield and reader ground must be tied together at the access panel and connect then to an earth ground at one point
  • Power: Power required is 12 VDC nominal at 120mA. The Receiver may be powered by the access panel. A linear power supply is recommended for best operation
  • Mounting: The Receiver may be mounted indoors or outdoors. The base of the enclosure includes a drill template providing mounting provisions to a wall box (standard North American and European), as well as pre-drilled holes in the four corners allowing mounting to a flat surface
  • Read Range Adjustment: As shipped, the Receiver is set for the maximum read range, which is nominally up to 500 feet. This may be reduced by adjusting the range pot in the counter-clockwise direction
  • Additionally, for optimal read range it is important that the Receiver be mounted as far from potential interference sources as possible
  • These sources may include, but are not limited to, large metal obstructions, as well as magnetic fields and radio transmissions. Note for each installation, read range may vary
  • External LED Indicator: Green: Initial power up Amber: Normal powered on state Flash Green: An activated Transmitter button press has been received and processed Flash Red: A non-activated Transmitter button press has been detected Off: Receiver is not powered on, or failed to power up successfully
  • Antenna Switch: As shipped, the Receiver's Antenna Switch is set in the INT position. If a separate antenna is to be used, then the switch should be set in the EXT position
  • Beeper Switch: As shipped, the Receiver's Beeper Switch is set in the ON position. If the installation technician prefers to disable the beeper and External LED Indicator, then the Beeper Switch should be set in the OFF position
  • Connections: 10-Pin Terminal Block - Refer to the information below for cabling to the Receiver:
  • AD0: Button One, Wiegand Data 0, Channel A
  • AD1: Button One, Wiegand Data 1, Channel A
  • BD0: Button Two, Wiegand Data 0, Channel B
  • BD1: Button Two, Wiegand Data 1, Channel B
  • CD0: Button Three, Wiegand Data 0, Channel C
  • CD1: Button Three, Wiegand Data 1, Channel C
  • DD0: Button Four, Wiegand Data 0, Channel D
  • DD1: Button Four, Wiegand Data 1, Channel D
  • GND: Power, 0VDC (Ground)
  • +VDC: Power, 12VDC Nominal
