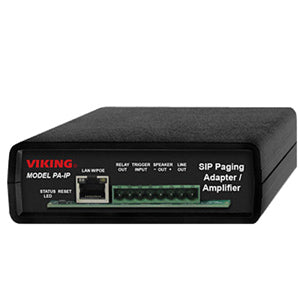

Viking PA-IP SIP Multicast Paging Adapter with Amplifier

The Viking model PA-IP SIP / Multicast Paging Adapter provides an interface between new VoIP phone systems (hardware or hosted/cloud based) and analog paging systems, eliminating the need for an...
Vendor: Viking
SKU: PA-IP
Availability: In Stock
$308.22
$308.22
Subtotal: $308.22
Viking PA-IP SIP Multicast Paging Adapter with Amplifier

Viking PA-IP SIP Multicast Paging Adapter with Amplifier

$308.22

Viking PA-IP SIP Multicast Paging Adapter with Amplifier

$308.22
The Viking model PA-IP SIP / Multicast Paging Adapter provides an interface between new VoIP phone systems (hardware or hosted/cloud based) and analog paging systems, eliminating the need for an ATA or FXS port.
PA-IP Features:
  • PoE powered (class 3, <13 watts)
  • Paging prioritization
  • Plays audio from multicast
  • SIP endpoint or multicast group member
  • Supports up to 10 multicast paging groups
  • Red "œPage/Status" LED indicator
  • SIP compliant
  • Network downloadable firmware
  • Autoprovisioning via Viking programming software
  • Built-in high efficiency 4 watt class D amplifier
  • Relay for activating door locks, strobe lights, external amplifiers, etc.
  • SIP/Multicast: SIP page, SIP page and zoned multicast stream, zoned multicast receive
  • Support for access code to prevent unwanted SIP calls
  • Line-level audio output for connecting to an external amplifier
  • Network remote volume control
  • Can drive additional external analog speakers for greater coverage
PA-IP Specifications:
  • Power: PoE class 3 (<13 watts)
  • Dimensions: 5" x 5.25" x 1.5" (127mm x 133mm x 38mm)
  • Operating Temperature: -40°F to 140°F (-40° C to 60° C)
  • Humidity: 5% to 95% non-condensing
  • Audio Codecs: G711u, G722 and G711a (SIP only)
  • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASETX with auto cross over
  • Sensitivity: 96dB / 1W / 1M S.P. Level
  • Frequency Response: 55 – 18,000 Hz (+/- 10 dB)
  • Connections: (1) RJ45 10/100 Base-T, (1) 8 position terminal block
