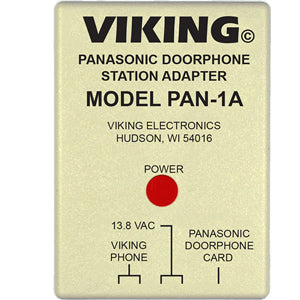

Viking PAN-1A Panasonic Doorphone Station Adapter

Panasonic Doorphone Station Adapter allows a Viking "œE" series speaker phone to interface with Panasonic doorphone / door station cards. Features: Interfaces in place of a Panasonic KX-T30865 or KX-T7775...
Vendor: Viking
SKU: PAN-1A
Availability: In Stock
$73.14
$73.14
Subtotal: $73.14
Viking PAN-1A Panasonic Doorphone Station Adapter

Viking PAN-1A Panasonic Doorphone Station Adapter

$73.14

Viking PAN-1A Panasonic Doorphone Station Adapter

$73.14
Panasonic Doorphone Station Adapter allows a Viking "œE" series speaker phone to interface with Panasonic doorphone / door station cards.
Features:
  • Interfaces in place of a Panasonic KX-T30865 or KX-T7775 doorphone
Allows use of these Viking entry phones:
  • E-10A Flush mount speaker phone
  • E-20B Surface mount speaker phone
  • E-30 Stainless steel speaker phone
  • E-32 Stainless steel double gang box mount
  • E-35 Stainless steel video speaker phone
  • E-40 Compact door entry phone
  • E-50 Compact video door entry phone
  • E-60-SS Double gang entry phone
  • E-65 Double gang video entry phone
  • E-70-SS Double gang entry phone with built in prox card reader
  • E-75-SS Double gang video entry phone with built in prox card reader
  • All Panasonic doorphone / door station card programming options and features may still be used
  • Increased audio performance over Panasonic's doorphones
  • Provides adjustable ringback tones to entry phone
  • Provides CPC signal to entry phone
Specifications:
  • Power: 120V AC/13.8V AC 1.25A UL listed adapter provided
  • Dimensions: 2.1" x 2.1" x 1.0" (53mm x 74mm x 25mm)
  • Operating Temperature: 32°F to 90°F (0°C to 32°C)
  • Humidity: 5% to 95% non-condensing
  • Talk Battery: 40V DC
  • Loop Current to Entry Phone: 25mA (typical)
  • Ring Generation to Entry Phone: 40Hz square wave
  • Maximum Run Length: 5280 ft / 1 mile (1610m ), 24 gauge
  • Connections: (1) RJ-11 jack to connect with Panasonic card, and (4) screw terminals for power and entry phone connections
Certifications:
  • FCC Part 15
