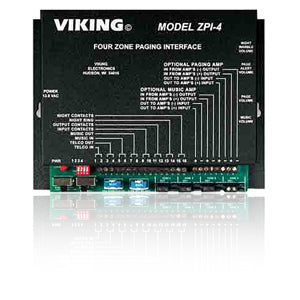

Viking ZPI-4 4-Zone Page Interface

The Viking 4-Zone Page Interface is a four-zone Touch Tone controlled paging system capable of switching a line level signal to amplifiers or an amplified signal to speakers. Applications: Multiple...
Vendor: Viking
SKU: ZPI-4
Availability: In Stock
$300.84
$300.84
Subtotal: $300.84
Viking ZPI-4 4-Zone Page Interface

Viking ZPI-4 4-Zone Page Interface

$300.84

Viking ZPI-4 4-Zone Page Interface

$300.84
The Viking 4-Zone Page Interface is a four-zone Touch Tone controlled paging system capable of switching a line level signal to amplifiers or an amplified signal to speakers.
Applications:
  • Multiple zone paging for Centrex systems
  • Multiple zone paging for phone systems with pagingports, unused analog station ports or unused trunk inputs
  • Multiple department manufacturing business
  • Multilevel warehouse
  • Multi building office complex
Features:
  • Touch Tone control of four zones (expandable to 16 zones)
  • Switches line level signal to amplifiers or amplified signal to speakers (amplifier(s) not included)
  • Balanced audio circuitry for low noise
  • Night bell warble with adjustable level from contact closure or ringing analog line
  • Input provided for background music
  • Separate paging and background music level adjustments Background music automatically mutes in paged zone(s) in all but single amplifier mode
  • All-call and five group call patterns, selected by Touch Tones
  • Adjustable page alert tone level
  • Interfaces with ringing C.O. lines, Centrex lines, paging ports, unused phone system trunk inputs, or ringing analog station ports
  • Disconnects on timeout, silence or CPC
  • Screw terminals for all input and output connections
  • GTIN 0615687221541
  • UPC Code 615687221541
Specifications:
  • Power: 120V AC/13.8V AC, 1.25A adapter provided
  • Dimensions: 210mm x 159mm x 45mm (8.25" x 6.25" x 1.75")
  • Shipping Weight: 1.5 kg (3.2 lbs.)
  • Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95% non-condensing humidity
  • Relay Contacts: 5 Amps @ 30V DC/250V AC each
  • REN: 0.5 A
  • Artificial Talk Battery Voltage: 24V DC
  • Connections: (34) cage clamp screw terminals
