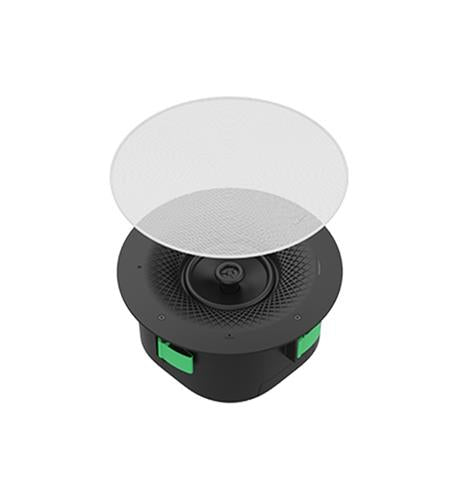

Yealink SkySound CS10 – 2-Way Coaxial Network Ceiling Speaker

The Yealink SkySound CS10 is a premium, low-profile ceiling speaker engineered to deliver exceptional audio clarity in modern meeting spaces. Featuring a 2-way coaxial design with a 5.7-inch woofer and a 1.1-inch tweeter, it provides high-fidelity sound reproduction, ensuring that every participant's voice is heard with precision. Its acoustically tuned design emphasizes speech frequencies, making it ideal for video conferencing and presentations.

The CS10 integrates seamlessly into various ceiling types, offering flexible installation options. Its sleek, minimalist design includes a detachable, paintable magnetic grille available in white or black, allowing it to blend effortlessly into any interior. Powered via PoE+ and equipped with an integrated DAC, the CS10 simplifies setup and reduces cable clutter, making it a practical choice for professional environments.

Specifications:

• Audio Performance:

  • Frequency Response (-6dB): 100 Hz – 20 kHz

  • Maximum SPL: 99 dB @ 1m (20W)

  • Sensitivity: 88 dB @ 1W, 1m

  • Nominal Impedance: 8 Ω

  • Coverage Angle: 120°

• Speaker Components:

  • Low-Frequency Driver: 5.7-inch (145 mm) woofer

  • High-Frequency Driver: 1.1-inch (28 mm) tweeter

• Power & Connectivity:

  • Power Supply: PoE+ (IEEE 802.3at, Class 4)

  • Rated Power: 24W (20W typical)

  • Interface: 1 x RJ-45

• Physical Characteristics:

  • Dimensions (with grille): Φ294 x H125.8 mm

  • Dimensions (without grille): Φ287.2 x H125 mm

  • Weight: 2.808 kg (without grille); 0.207 kg (grille)

  • Color Options: White / Black

  • Materials:

    • Grille: PC/ABS welded SPCC

    • Main Body Shell: PA (Polyamide) with 15% GF

    • Bottom Shell: Aluminum alloy

    • Cover Plate: PC/ABS and SGCC

• Environmental Conditions:

  • Operating Temperature: 0°C to 50°C

  • Storage Temperature: 0°C to 50°C

  • Operating Humidity: 5% to 90%

• Certifications:

  • Plenum Rated: UL 2043 (suitable for air handling spaces)

• Package Contents:

  • CS10 Speaker

  • White Mesh Cover (Black optional)

  • Quick Start Guide

  • Assembly Fixing Bracket

  • Dust Cover

  • Deployment Instruction Template

  • Bracing Bridge

  • 6 x Dust Cover Screws (M3 x 4CMHOZN3)
